Cross-cell-type co-progression (Brain MERFISH)
2026-04-15
Source:vignettes/brain_merfish_two_type.Rmd
brain_merfish_two_type.RmdOverview
This vignette demonstrates cross-cell-type co-progression using brain MERFISH data from Zhang et al. Nature 2023. We analyze D1 and D2 GABAergic neurons in the striatum, detecting coordinated spatial gene expression patterns between these two cell populations.
Download and load data
data_path <- copro_download_data("brain_merfish")## Downloading copro_brain_merfish.rds from GitHub Release 'data-v1'...## Downloaded to: /home/runner/.cache/R/CoPro/copro_brain_merfish.rds

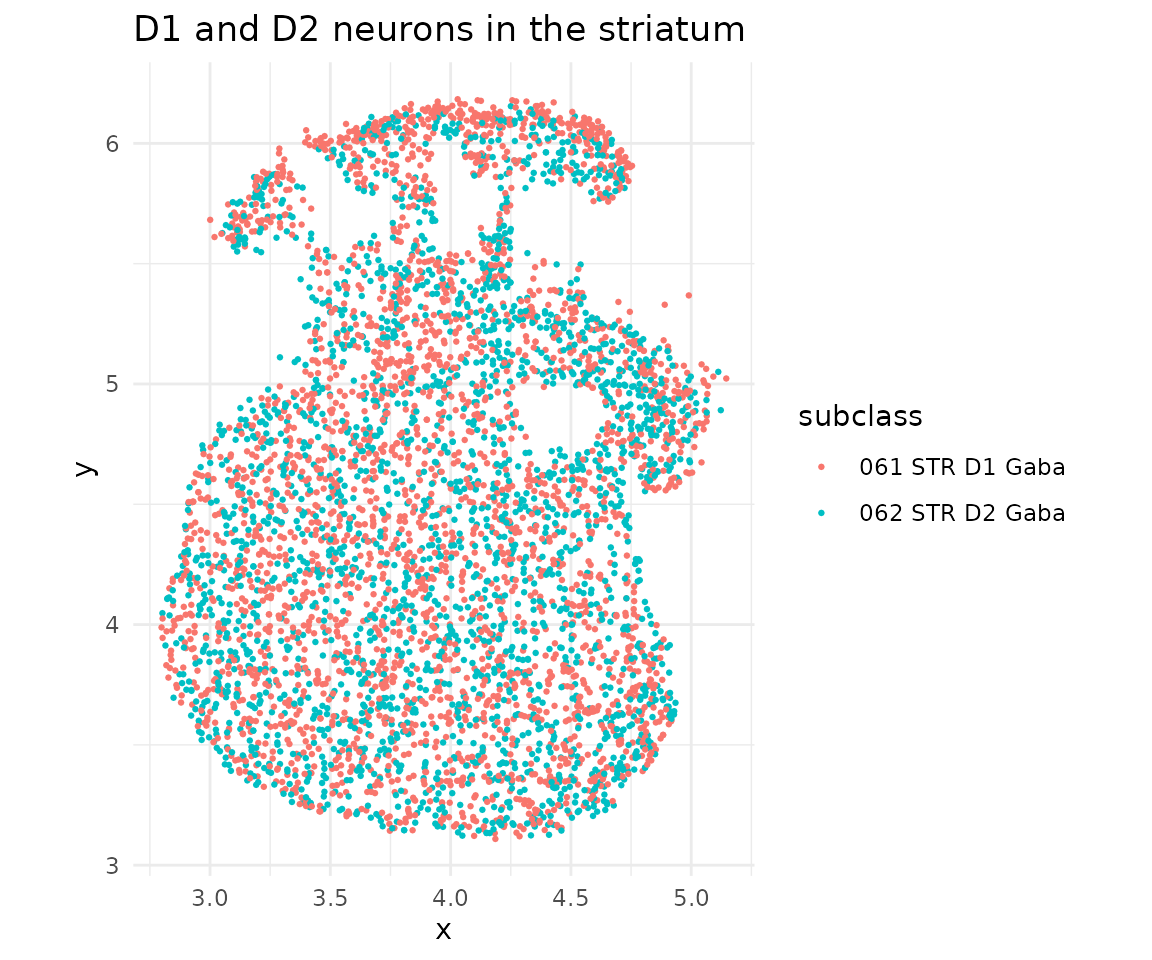

dat <- readRDS(data_path)Visualize spatial layout
ggplot(dat$metaData) +
geom_point(aes(x = x, y = y, color = subclass), size = 0.5) +
coord_fixed() +
theme_minimal() +
ggtitle("D1 and D2 neurons in the striatum")
Create CoPro object and run pipeline
cell_types <- c("061 STR D1 Gaba", "062 STR D2 Gaba")
obj <- newCoProSingle(
normalizedData = dat$normalizedData,
locationData = dat$locationData,
metaData = dat$metaData,
cellTypes = dat$cellTypes
)
obj <- subsetData(obj, cellTypesOfInterest = cell_types)
# Core pipeline
obj <- computePCA(obj, nPCA = 40, center = TRUE, scale. = TRUE)## Input is dense (matrixarray), performing irlba pca...
## Input is dense (matrixarray), performing irlba pca...
obj <- computeDistance(obj, distType = "Euclidean2D",
normalizeDistance = FALSE)## 0% 25% 50% 75% 100%
## 0.03333036 0.77980408 1.21734420 1.70564639 3.10426158
obj <- computeKernelMatrix(obj, sigmaValues = c(0.1, 0.14, 0.2, 0.5))## Computing pairwise kernel matrix for 2 cell types
## current sigma value is 0.1
## current sigma value is 0.14
## current sigma value is 0.2
## current sigma value is 0.5
obj <- runSkrCCA(obj, scalePCs = TRUE, maxIter = 500)## Running skrCCA for sigma = 0.1## [1] "Convergence reached at 27 iterations (Max diff = 8.929e-06 )"
## [1] "Convergence reached at 0 iterations (Max diff = 3.417e-14 )"## Running skrCCA for sigma = 0.14## [1] "Convergence reached at 21 iterations (Max diff = 6.632e-06 )"
## [1] "Convergence reached at 1 iterations (Max diff = 4.441e-16 )"## Running skrCCA for sigma = 0.2## [1] "Convergence reached at 17 iterations (Max diff = 6.454e-06 )"
## [1] "Convergence reached at 1 iterations (Max diff = 4.302e-16 )"## Running skrCCA for sigma = 0.5## [1] "Convergence reached at 11 iterations (Max diff = 7.408e-06 )"
## [1] "Convergence reached at 0 iterations (Max diff = 1.480e-15 )"## Optimization succeeded for 4 sigma value(s): sigma_0.1, sigma_0.14, sigma_0.2, sigma_0.5
obj <- computeNormalizedCorrelation(obj)## Calculating spectral norms, depending on the data size, this may take a while.
## Finished calculating spectral norms

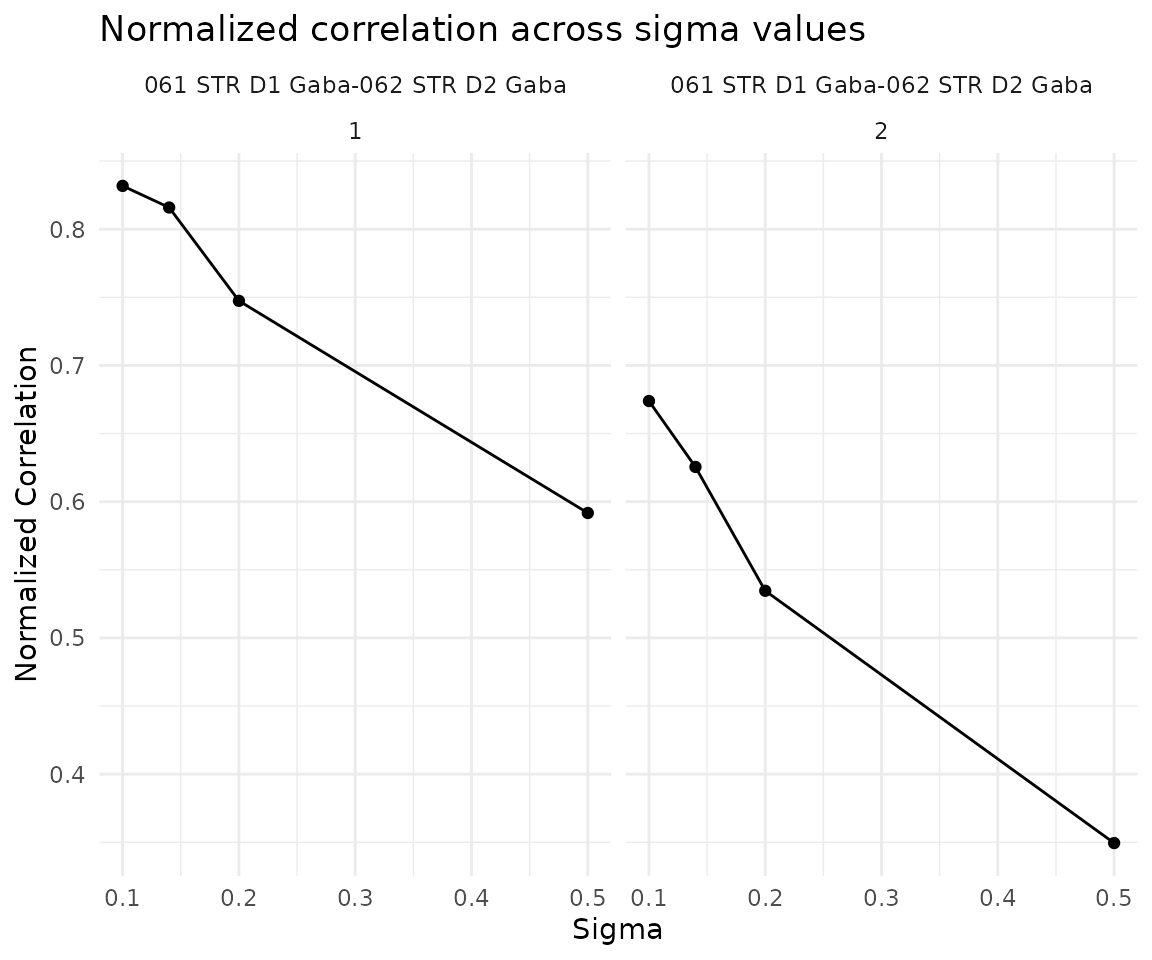

obj <- computeGeneAndCellScores(obj)Select optimal sigma
ncorr <- getNormCorr(obj)
ggplot(ncorr, aes(x = sigmaValues, y = normalizedCorrelation)) +
geom_point() +
geom_line() +
facet_wrap(~ ct12 + CC_index) +
xlab("Sigma") +
ylab("Normalized Correlation") +
ggtitle("Normalized correlation across sigma values") +
theme_minimal()

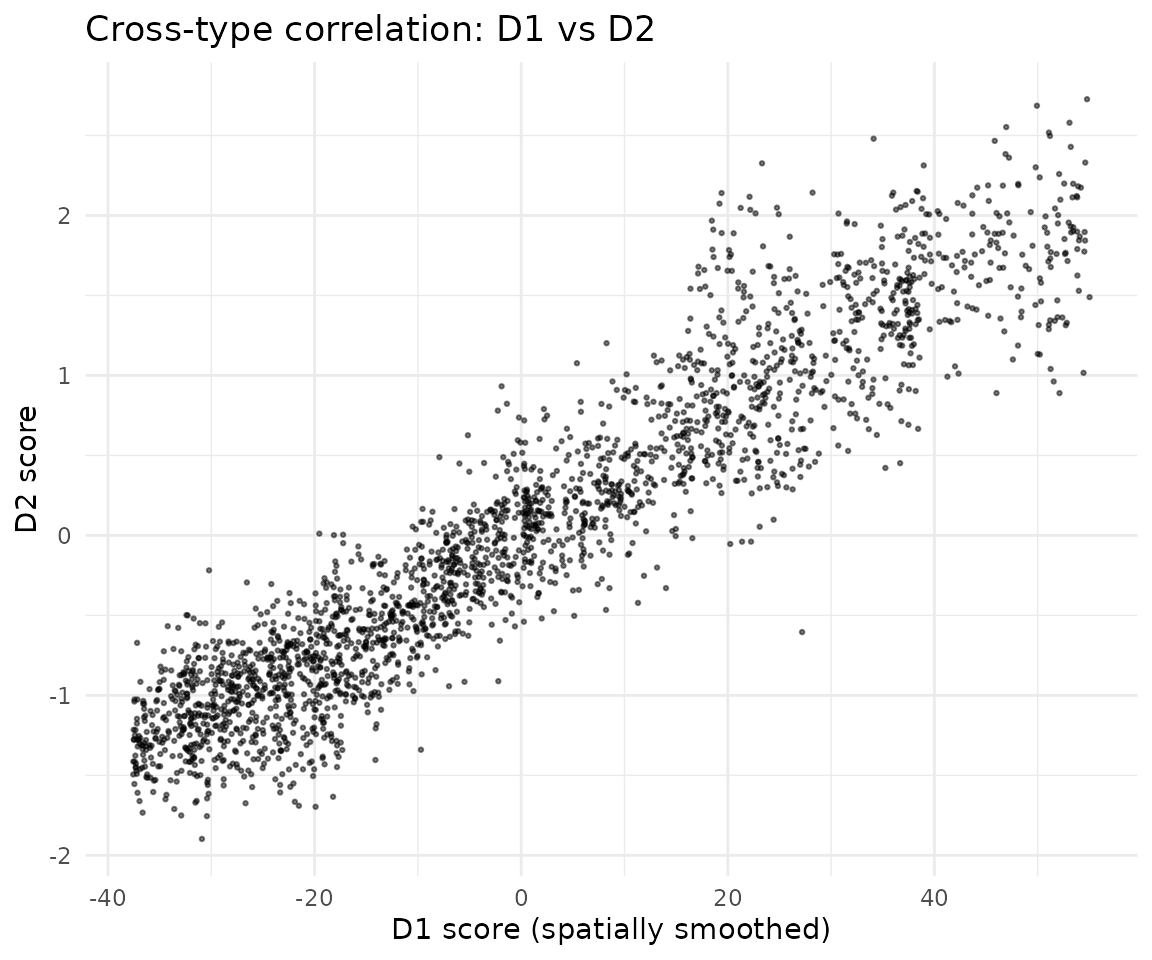

Cross-type correlation
Visualize how cell scores in D1 neurons (smoothed by the spatial kernel) correlate with D2 neuron scores:
df_corr <- getCorrTwoTypes(obj,
sigmaValueChoice = 0.14,
cellTypeA = "061 STR D1 Gaba",
cellTypeB = "062 STR D2 Gaba"
)
ggplot(df_corr) +
geom_point(aes(x = AK, y = B), size = 0.5, alpha = 0.5) +
xlab("D1 score (spatially smoothed)") +
ylab("D2 score") +
ggtitle("Cross-type correlation: D1 vs D2") +
theme_minimal()

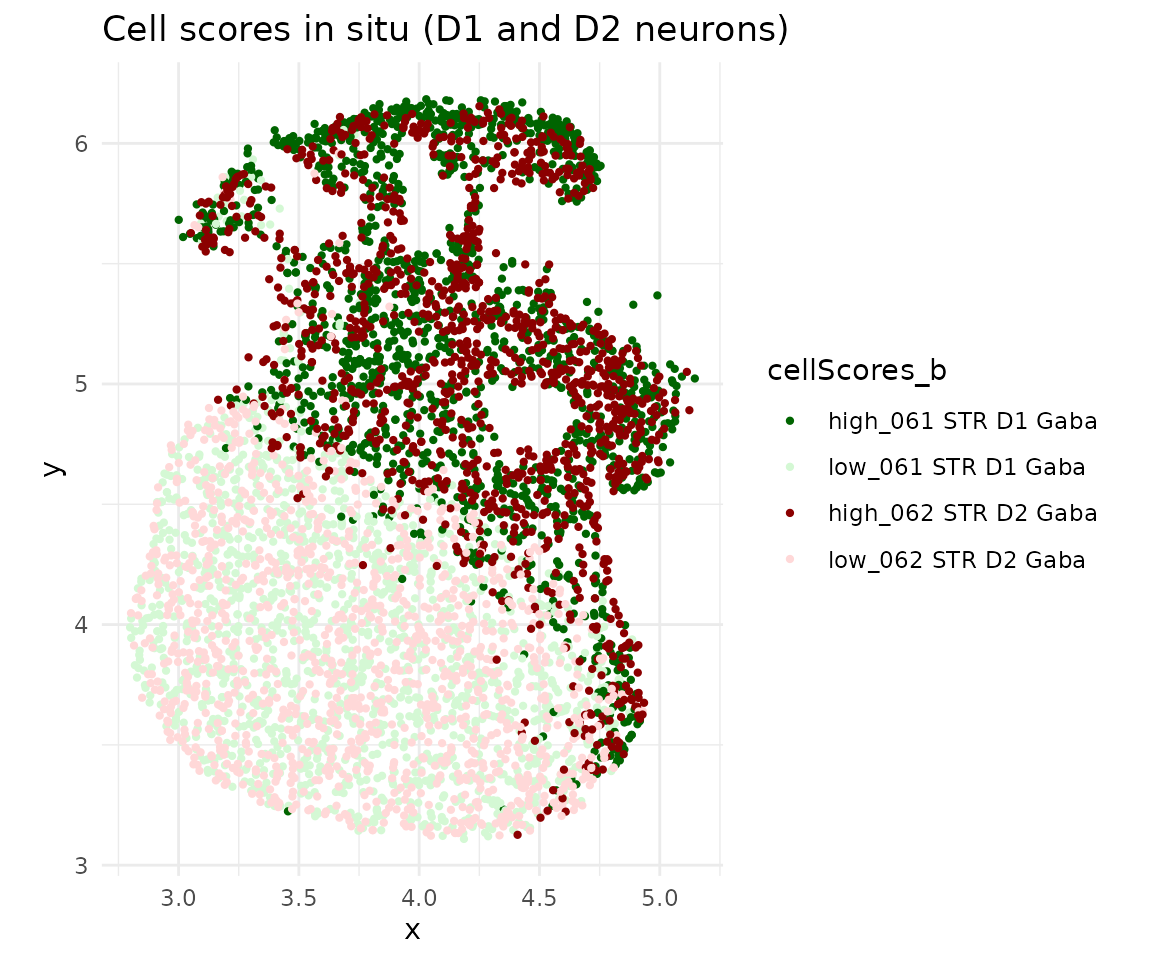

In situ visualization
cs <- getCellScoresInSitu(obj, sigmaValueChoice = 0.14)
ggplot(cs) +
geom_point(aes(x = x, y = y, color = cellScores_b), size = 0.8) +
scale_color_manual(values = c("darkgreen", "#d4f8d4",
"darkred", "#ffd8d8")) +
coord_fixed() +
ggtitle("Cell scores in situ (D1 and D2 neurons)") +
theme_minimal()

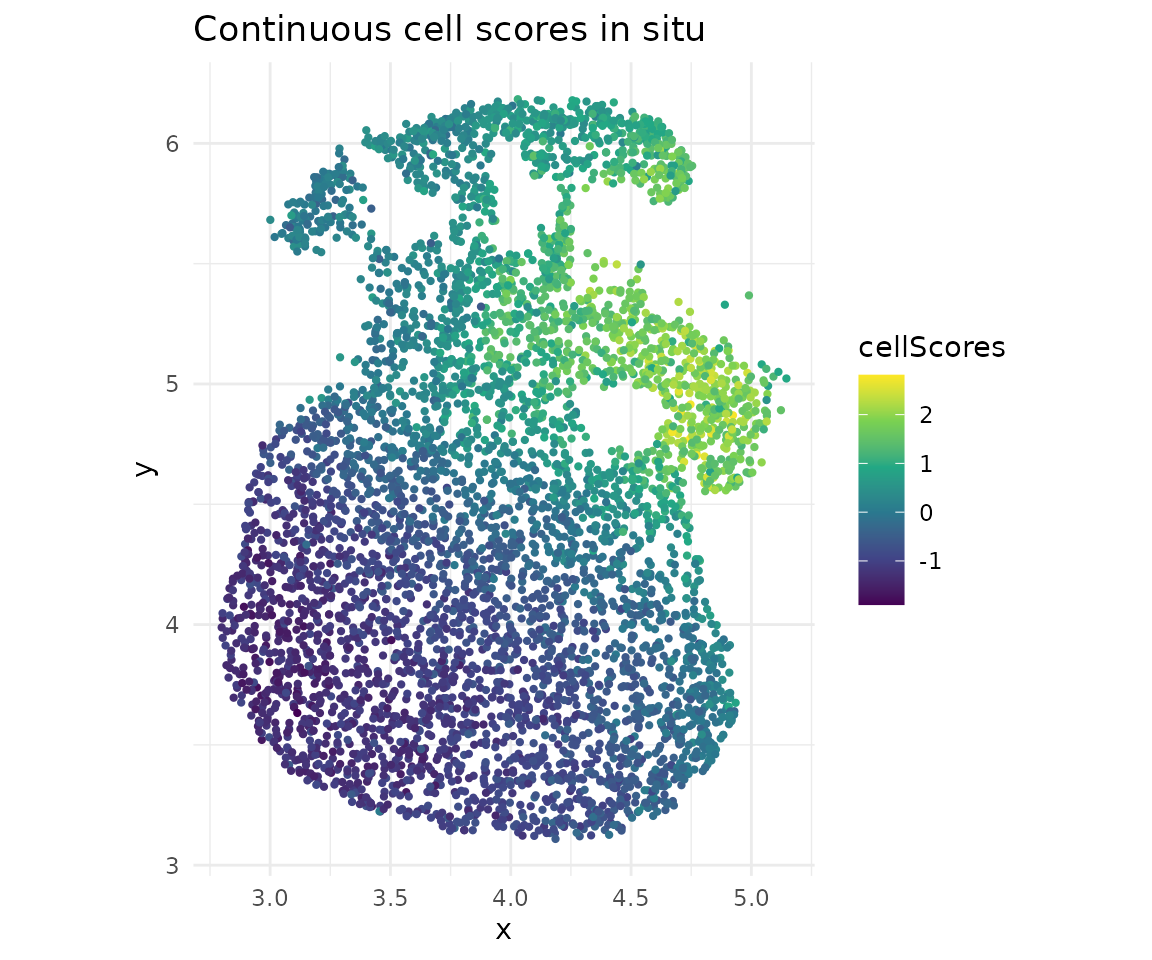

# Continuous scores
ggplot(cs) +
geom_point(aes(x = x, y = y, color = cellScores), size = 0.8) +
scale_color_viridis_c() +
coord_fixed() +
ggtitle("Continuous cell scores in situ") +
theme_minimal()
Permutation test
Establish statistical significance with spatial permutations:
obj <- runSkrCCAPermu(obj, nPermu = 5L, permu_method = "bin",
num_bins_x = 10, num_bins_y = 10)## Warning in runSkrCCAPermu(obj, nPermu = 5L, permu_method = "bin", num_bins_x =
## 10, : nPermu < 10 may give unreliable p-values. Consider nPermu >= 100.## Permutation settings:
## permu_method: bin
## permu_which: second_only
## -> Cell type 061 STR D1 Gaba is FIXED, others are permuted
## num_bins_x: 10
## num_bins_y: 10
## Total bins: 100
## match_quantile: FALSE
##
## Generating cell permutation indices...
## Cell permutation indices generated.
##
## Running CCA optimization for 5 permutations...
## [1] "Convergence reached at 22 iterations (Max diff = 8.787e-06 )"
## [1] "Convergence reached at 0 iterations (Max diff = 5.763e-13 )"
## [1] "Convergence reached at 47 iterations (Max diff = 9.597e-06 )"
## [1] "Convergence reached at 1 iterations (Max diff = 4.108e-15 )"
## [1] "Convergence reached at 21 iterations (Max diff = 9.612e-06 )"
## [1] "Convergence reached at 0 iterations (Max diff = 3.344e-11 )"
## [1] "Convergence reached at 54 iterations (Max diff = 8.615e-06 )"
## [1] "Convergence reached at 1 iterations (Max diff = 7.380e-15 )"
## [1] "Convergence reached at 16 iterations (Max diff = 9.050e-06 )"
## [1] "Convergence reached at 0 iterations (Max diff = 3.650e-12 )"
## Completed 5 of 5 permutations
##
## Permutation testing complete.
## Run computeNormalizedCorrelationPermu() to compute p-values.
obj <- computeNormalizedCorrelationPermu(obj, tol = 1e-3)## Calculating spectral norms...
## Spectral norms calculated.
##
## Computing normalized correlations for permutations...
## Completed 5 of 5 permutations
##
## Normalized correlation computation complete.## sigmaValues cellType1 cellType2 CC_index
## permu_1.1 0.1 061 STR D1 Gaba 062 STR D2 Gaba 1
## permu_1.2 0.1 061 STR D1 Gaba 062 STR D2 Gaba 2
## permu_2.1 0.1 061 STR D1 Gaba 062 STR D2 Gaba 1
## permu_2.2 0.1 061 STR D1 Gaba 062 STR D2 Gaba 2
## permu_3.1 0.1 061 STR D1 Gaba 062 STR D2 Gaba 1
## permu_3.2 0.1 061 STR D1 Gaba 062 STR D2 Gaba 2
## permu_4.1 0.1 061 STR D1 Gaba 062 STR D2 Gaba 1
## permu_4.2 0.1 061 STR D1 Gaba 062 STR D2 Gaba 2
## permu_5.1 0.1 061 STR D1 Gaba 062 STR D2 Gaba 1
## permu_5.2 0.1 061 STR D1 Gaba 062 STR D2 Gaba 2
## normalizedCorrelation
## permu_1.1 0.2822854
## permu_1.2 0.2208827
## permu_2.1 0.2703554
## permu_2.2 0.2507406
## permu_3.1 0.2523586
## permu_3.2 0.1980277
## permu_4.1 0.2575950
## permu_4.2 0.2257873
## permu_5.1 0.2828030
## permu_5.2 0.2102234References
Zhang, M., Pan, X., Jung, W. et al. Molecularly defined and spatially resolved cell atlas of the whole mouse brain. Nature 624, 343–354 (2023). https://doi.org/10.1038/s41586-023-06808-9
